J-Servers - All products

Five 10/100/1,000 Mbps auto-negotiation RJ45 ports with auto MDI / MDIX supported
Easily wired network expansion
Compact design for flexible arrangement
Plug and play setup, no configuration required
Green Ethernet technology saves power by up to 82%

Cool, Ultra-Compact Design A sleek, square build with a cool red and black color combination provides a high-tech look and feel. About the same size as a smartphone, MS105G sits anywhere in your home.

MS105G is flexible and fully compatible with 4K Ultra HD TVs, computers, printers, IP cameras, game consoles, and more. This makes it perfect for use in home, small office, and even dormitory environments.
Reliable Performance With Half/Full Duplex and MAC Address Learning Technology, MS105G provides up to 10 Gbps of stable switching bandwidth. Every unit undergoes extensive testing prior to shipment to ensure it will provide reliable, uninterrupted connections for years to come.
Go Green with Your Ethernet You now have the choice to go green when upgrading to a gigabit network! MS105G features the latest innovative energy-efficient technologies to greatly expand your network capacity with much less power.

5 10/100/1000Mbps Ports,
Auto-Negotiation, Auto-MDI/MDIX

LED
Ethernet Ports (1, 2, 3, 4, 5), Power

External Power Supply
5V/0.6A

Dimensions (W X D X H)
105×70×24.9 mm

Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD

Data Rates
10/100/1000 Mbps at Half Duplex
20/200/2000 Mbps at Full Duplex

Buffer Capacity
512 Kbit

Jumbo Frame
9 KB

Transfer Method
Store and Forward

Package Contents
1. 5-Port 10/100/1000Mbps Desktop Switch (MS105G)
2. Power Adapter
3. Quick Installation Guide

5 10/100Mbps Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
Green Ethernet technology saves the power up to 60%
IEEE 802.3x flow control provides reliable data transfer
Plastic case, desktop design
Plug and play, no configuration required

Innovative energy-efficient technology saves power up to 60%
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
Auto-MDI/MDIX eliminates the need for crossover cables
Supports MAC address auto-learning and auto-aging
Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware
Fanless design ensures quiet operation
Desktop design
Plug and Play design simplifies installation

5 Gigabit Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
Green Ethernet technology saves the power up to 85%
IEEE 802.3x flow control provides reliable data transfer
Plastic case, desktop or wall-mounting design
Plug and play, no configuration required

• Eight 10/100/1,000 Mbps auto-negotiation RJ45 ports with auto MDI / MDIX supported
• Easily wired network expansion
• Compact design for flexible arrangement
• Plug and play setup, no configuration required
• Green Ethernet technology saves power by up to 82%

Expand Ethernet Network with Gigabit Ports
Quickly expand your wired network with eight 10/100/1000 Mbps Ethernet ports—10 times faster than regular 10/100 Mbps Ethernet ports. MS108G is flexible and fully compatible with 4K Ultra HD TVs, computers, printers, IP cameras, game consoles, and more. This makes it perfect for use in home, small office, and even dormitory environments.

Cool, Ultra-Compact Design
A sleek, square build with a cool red and black color combination provides a high-tech look and feel. About the same size as a smartphone, MS108G sits anywhere in your home without taking up too much space.

Plug and Play
Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.

Go Green with Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! MS108G features the latest innovative energy-efficient technologies to greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Interfaces 8 10/100/1000Mbps Ports, Auto-Negotiation,
Auto-MDI/MDIX
LED Ethernet (1, 2, 3, 4, 5, 6, 7, 8), Power
External Power Supply 9V/0.6A
Dimensions (W X D X H) 127 x 60.3 x 22 mm
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD
Data Rates 10/100/1000Mbps at Half Duplex
20/200/2000Mbps at Full Duplex
Buffer Capacity 64KB
Jumbo Frame 9KB
Transfer Method Store and Forward

16 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Green Ethernet technology saves power consumption
IEEE 802.3x flow control provides reliable data transfer
Steel housing, desktop or wall-mounting design
Support 802.1p/DSCP QoS and IGMP Snooping function
Plug and play, with no configuration needed

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i /802.3u /802.3ab /802.3x /802.1p
Interface 16 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity Fanless
Power Consumption Maximum: 10.0W
External Power Supply External Power Adapter (Output: 12VDC / 1.0A)
LED Indicator System Power
Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H ) 11.26 x 4.4 x 1.0 in. (286*111.7*25.4 mm)
PERFORMANCE
Packet Forwarding Rate 23.8Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1Mb
Jumbo Frame 10KB
SOFTWARE FEATURES
Advanced Features Green Technology
802.3X Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method Store and Forward
OTHERS
Certification CE, FCC ,RoHS
Package Contents 16-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Rubber Feet
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90%, non-condensing
Storage Humidity: 5%~90% non-condensing

16 10/100/1000Mbps ports provide instant large file transfers
Innovative energy-efficient technology reduces power consumption by up to 40%
IEEE 802.3x flow control provides reliable data transfers
10K Jumbo frame improves performance of large data transfers
Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics
Port and tag-based QoS enable smooth latency-sensitive traffic
Abundant VLAN features improve network security via traffic segmentation
IGMP Snooping optimizes multicast applications
Centrally manage all Easy Smart Switches with Easy Smart Configuration Utility

10-Port Gigabit Desktop Switch with 8-Port PoE+
9 10/100/1000Mbps RJ45 ports, 1 Gigabit SFP port
With 8 PoE+ ports, transfers data and power on one single cable
Working with IEEE 802.3af/at compliant PDs, expands home and office network
802.1p/DSCP QoS enable smooth latency-sensitive traffic
High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports
Easy to use, with no configuration and installation needed

HARDWARE FEATURES
Interface 8 PoE+ 10/100/1000Mbps RJ45 Ports
1 10/100/1000Mbps RJ45 Port
1 Gigabit SFP Slot
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-X MMF, SMF
Fan Quantity Fanless
Physical Security Lock Yes
Power Supply External Power Adapter(Output: 53.5VDC / 1.31A)
Backup Bandwidth 20 Gbps
PoE+ Ports(RJ45) Standard: 802.3at/802.3af compliant
PoE Ports: Port1- Port 8
PoE Power Budget: 63W
Mac Address Table 4K
Dimensions ( W x D x H ) 209 × 126 × 26 mm
Max Power Consumption 7.11 W (220/50Hz. no PD connected)
78.13 W (220/50Hz. with 63W PD connected)
Max Heat Dissipation 24.25 BTU/h (no PD connected)
266.42 BTU/h (with 63W PD connected)
SOFTWARE FEATURES
Advanced Features Compatible With IEEE 802.3af/at Compliant PDs
EEE802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transmission Method Store-And-Forward
OTHERS
Certification CE, FCC, RoHS
Package Contents TL-SG1210P, Power Adapter, Installation Guide
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing

24 10/100/1000Mbps ports provide instant large file transfers
Innovative energy-efficient technology reduces power consumption by up to 40%
IEEE 802.3x flow control provides reliable data transfers
10K Jumbo frame improves performance of large data transfers
Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics
Port and tag-based QoS enable smooth latency-sensitive traffic
Abundant VLAN features improve network security via traffic segmentation
IGMP Snooping optimizes multicast applications
Centrally manage all Easy Smart Switches with Easy Smart Configuration Utility.

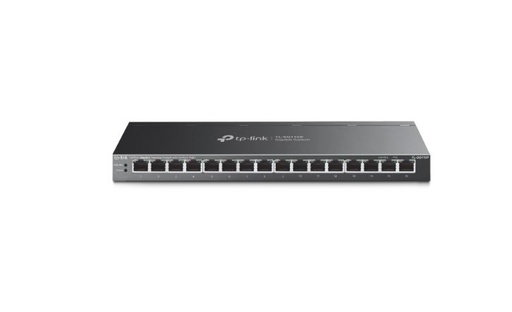

• 16× 10/100/1000 Mbps RJ45 ports
• With 16 PoE+ ports, transfers data and power on one single cable
• Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
• Supports PoE Power up to 120 W for all PoE ports*
• Up to 250 m data and power transmission range under Extend Mode**
• Priority Mode ensures high priority of ports 1–4 to guarantee the quality of the sensitive applications
• Isolation Mode allows one-click client traffic separation for higher security and performance
• Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
• Plug and play with no configuration required

Warranty Period: 5-Year

• 24 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots
• PoE power budget is up to 250 W*, making it ideal for small to medium business surveillance systems
• Priority Mode helps to guarantee the quality of sensitive application like video monitoring
• PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices
• QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV
• Intelligent power management can protect the switch from overload

HARDWARE FEATURES
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface 26 10/100/1000 Mbps RJ45 Ports
2 Gigabit SFP Ports
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-X MMF, SMF
Fan Quantity 2 Fans
Physical Security Lock Yes
Power Supply 100-240V AC, 50/60 Hz
PoE+ Ports(RJ45) Standard: 802.3at/802.3af compliant
PoE+ Ports: 24 Ports
Power Supply: 250 W
Dimensions ( W x D x H ) 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
Mounting Rack Mountable
Max Power Consumption 27 W (220/50Hz. no PD connected)
304.7 W (220/50Hz. with 250 W PD connected)
Max Heat Dissipation 92.07 BTU/h (no PD connected)
1039.03 BTU/h (with 250 W PD connected)

PERFORMANCE
Switching Capacity 56 Gbps
Packet Forwarding Rate 41.7 Mbps
MAC Address Table 8K
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 9 KB

SOFTWARE FEATURES
Quality of Service Support Port-based 802.1p/DSCP priority

JetStream 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
Gigabit Speeds: 48× gigabit RJ45 ports offer high-speed and reliable connections to other switches and devices.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
Static Routing: Helps route internal traffic for more efficient use of network resources.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities

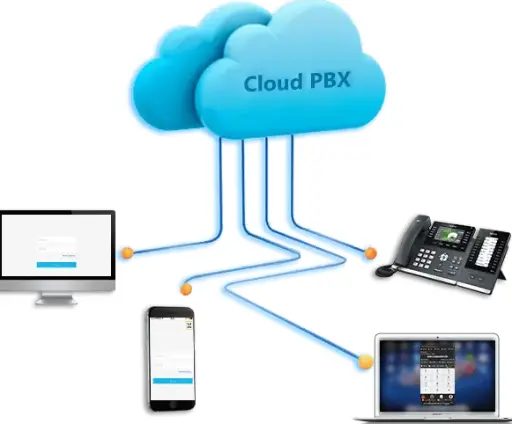

Ideal for businesses with up to 5 users
Including Local, National & Mobile Calls
13/1300 Calls 40c Per Call
1x Local Single Number

*Fair Use Policy apply
* Ts & Cs apply

• Super VDSL – The Latest Super VDSL (VDSL2 Profile 35b) tech delivers internet speeds of up to 350Mbps, while G.vector and RNC technology ensure advanced data transmission stability
• Next-Gen Gigabit Wi-Fi 6 Speed - 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads.
• 2×2 MU-MIMO – Simultaneously transfers data to multiple devices for 4x faster performance
• VoIP Support - Support multiple VoIP accounts and various call features to surpass traditional landlines.
• TP-Link Tether App – Easily access and manage your network, including remote control and automatic updates, using any iOS or Android mobile device
• Versatile Connectivity - Fully compatible with VDSL2/ADSL2+/ADSL2/ADSL standards, support Fiber and Cable connection through Ethernet port, as well as 3G/4G internet services through USB port.

Warranty Period: 3-Year
