USB Network Adapter

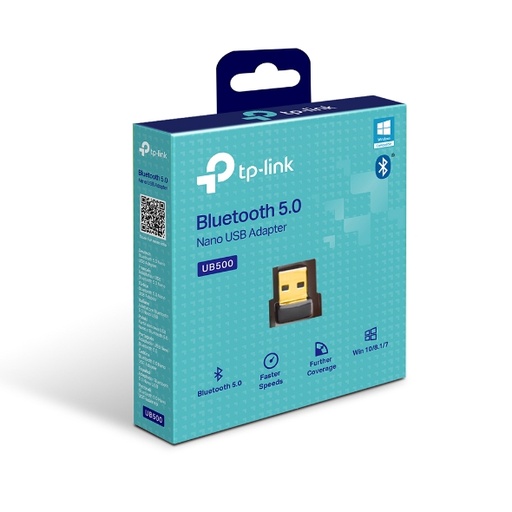

• Bluetooth 5.0 – Applies the latest Bluetooth 5.0 technology, backward compatible with Bluetooth V4.0/3.0/2.1/2.0/1.1
• Wireless Connectivity – Provides stable and convenient communication between Bluetooth devices and your PC or laptop
• Nano-Sized – Ultra-small for convenient portability with reliable high performance
• Supported Operating System – Windows 10/8.1/7

HARDWARE FEATURES
Standards and Protocols Bluetooth 5.0
Interface USB 2.0
Dimensions 0.58 × 0.27 × 0.74 in (14.8 × 6.8 × 18.9 mm)

OTHERS
Package Contents Bluetooth 5.0 Nano USB Adapter UB500
Quick Installation Guide
System Requirements Supported operating systems include Win 10/8.1/7
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

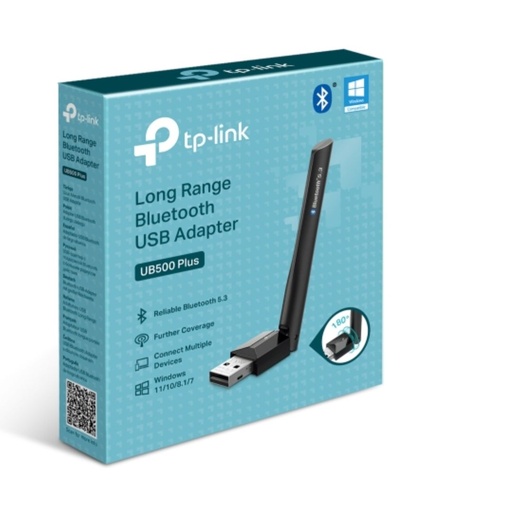

• Bluetooth 5.3 — Security and reliability improvement than last-gen Bluetooth
• Wireless Connectivity – Provides stable and convenient communication between Bluetooth devices and your PC or laptop
• Adjustable, Multi-Directional Antenna – Rotate and adjust the multi-directional antenna to improve user experience and performance in different environments.
• Supported Operating System – Windows 11/10/8.1/7

Warranty Period: 3-Year

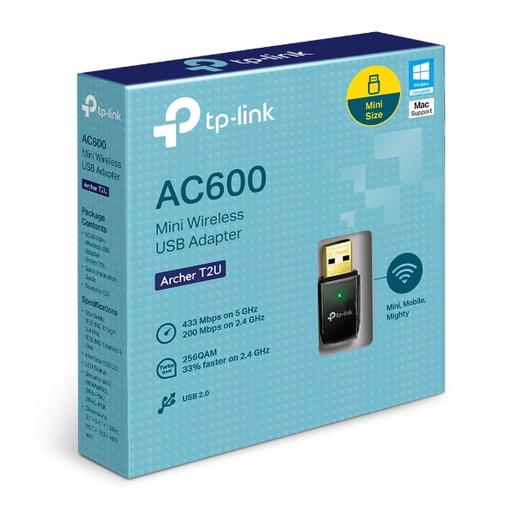

600 (433+150)Mbps wireless speed with 802.11ac
ŸA tiny way to get speedy next generation Wi-Fi connections
ŸSelectable Dual Band connections for lag-free HD video streaming and gaming
ŸAdvanced Security: Supports 64/128 WEP, WPA, PA2/WPA-PSK/WPA2-PSK (TKIP/AES)
ŸSupports Windows 8.1/8/7/XP,Mac OS X 10.7~10.10 and Linux

HARDWARE FEATURES
Interface USB 2.0
Dimensions ( W x D x H ) 1.6×0.7×0.3 in. (41×19.5×8.7mm)
Antenna Type Omni Directional
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac, IEEE 802.11a,
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 5GHz
2.4GHz
Signal Rate 5GHz
11ac: Up to 433Mbps(dynamic)
11n: Up to 150Mbps(dynamic)
11a: Up to 54Mbps(dynamic)
2.4GHz
11n: Up to 150Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 5GHz：
11a 6Mbps: -94dBm
11a 54Mbps: -78dBm
11n HT20 MCS0: -94dBm
11n HT20 MCS7: -77dBm
11n HT40 MCS0: -92dBm
11n HT40 MCS7: -74dBm
11ac VHT80 MCS0: -89dBm
11ac VHT80 MCS9: -64dBm
2.4GHz:
11b 1Mbps: -99dBm
11b 11Mbps: -91dBm
11g 6Mbps: -94dBm
11g 54Mbps: -77dBm
11n HT20 MCS0: -95dBm
11n HT20 MCS7: -76dBm
11n HT40 MCS0: -92dBm
11n HT40 MCS7: -73dBm
Transmit Power <20dBm (EIRP)
Wireless Modes Ad-Hoc / Infrastructure mode
Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
OTHERS
Certification CE, FCC, RoHS
Package Contents Wireless Adapter Archer T2U
Resource CD
Quick Installation Guide
System Requirements Windows 8.1/8 (32/64bits), Windows 7 (32/64bits), Windows XP(32/64bits),
Mac OS X 10.7~10.10, Linux
