Tech Specs
EU Version:
GMS: B2/3/5/8
WCDMA: B1/2/5/8
TD-SCDMA: B34/B39
FDD-LTE: B1/3/5/7/8/20/28A/28B
TDD-LTE: B38/39/40/41
US Version:
GMS: B2/5
WCDMA: B1/2/5/8
TD-SCDMA: B34/B39
FDD-LTE: B1/2/4/5/7/12/17/28A/28B/66
TDD-LTE: B38/B40
Wi-Fi
IEEE 802.11 a/b/g/ac/k/v/r, 2.4GHz & 5GHz
Bluetooth
BT4.0 & BLE5.0
Navigation
GPS/GLONASS.AGPS
Android 11
RAM+ROM
2GB + 32GB
Card Slot
Dual Nano SIM Card + TF Card
Interface
M6 / K Port
USB
Type-C
Standard Interface
External Power Interface / External
GPS Antenna Interface / External
GSM Antenna Interface / External
Speaker Interface
Optional Interface
Option A: DB15 Interface
Option B: HDMI Interface / RJ45 Interface
Screen
G + F Touch Screen
Screen Size
IPS 2.45" , 240*432
Speaker
35*58mm Racetrack Speaker, 5W
Camera
Three Camera Inputs Supported
(1*USB, 2*DB15 simultaneously)
Dimension (H*W*D)
188 * 58 * 87mm (With the knob)
Weight
450g
Working Temp
-20C - 60C
Storage Temp
-30C - 70C
Ingress Protection
IP54
Certificate
CE/FCC/ROHS

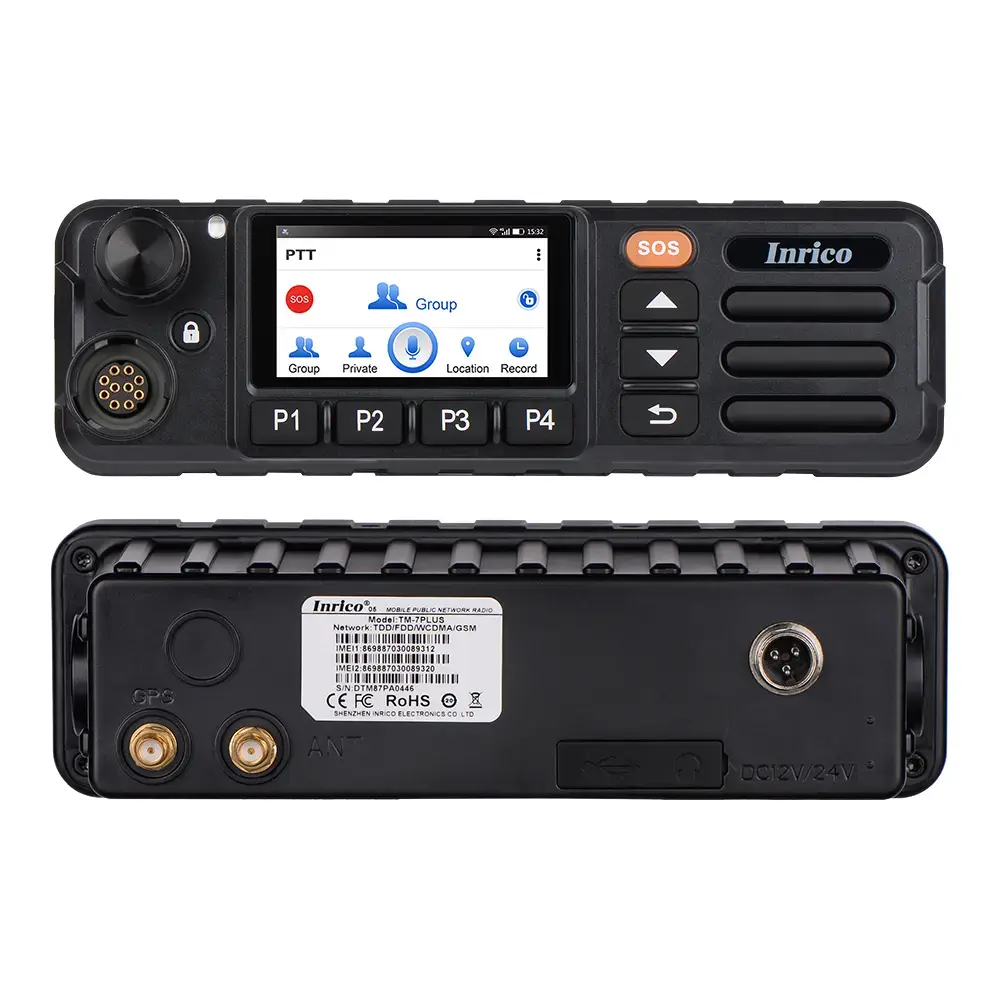

Inrico TM-7Plus
40V Anti-Overvoltage Protection, Compatible with Various Vehicles
TM-7Plus offers up to 40V anti-overvoltage protection, making it applicable to various vehicles ranging from 12V, 24V, to 36V, dramatically enhancing safety in use.
Android 11 Ecosystem, Supported by GMS
TM-7Plus is driven by Android 11 Ecosystem, which provides users with a more comprehensive service experience. Empowered by Google Mobile Service (GMS), the radio can support Google apps and third-party apps for a truly efficient and productive experience.
3pin Aviation Power Connector and Acc Wire
TM-7Plus is equipped with a reinforced 3pin aviation power connector, which is more solid and reliable to ensure a continuous and stable power supply. The mobile radio can sync with the vehicle ignition, making the operation more convenient.
