Deepcool C+P System Build Special

(0 review)
Matrexx 30 is small-sized M-ATX computer case, perfect for gamers looking to build a small gaming PC. Its logical interior structure maximizes compatibility. The full-sized tempered glass side panel provides optimal view of the interior.

The classic M-ATX structure (dimensions 420 x 201 x 365mm) is compatible with M-ATX and ITX motherboards
Small and compact but with plenty of capacity

Case

Technical Spec
MotherboardsMicro ATX/Mini-ITX
Case TypeMini Tower
Materials
ABS+SPCC (Steel panel thickness: 0.5mm) Tempered Glass side panel (thickness: 3mm）
Product Dimensions (L×W×H)405.8×193×378.2mm
Net Weight3.62 Kg
Gross Weight4.33 kg
5.25" Drive Bays1 Not compatible with Micro-ATX(244mm×244mm or bigger motherboards)
3.5" Drive Bays3
2.5" Drive Bays2
I/O PortsUSB2.0×1, USB3.0×1, Audio×1, Mic×1
Expansion Slots4
Cooling Fans Support
Pre-installed: 1×120mm black fan at rear Optional: Front: 1×120mm
Cable Management14.8mm Clearance
Liquid Cooler SupportRear: 120mm radiator
Power Supply TypeATX PS2 (maximum length: 170mm)
CPU Cooler Height Limit151mm
Graphics-card Length Limit250mm
Carton Dimension (LxWxH)415×240×465mm
EAN6933412713715
P/NDP-MATX-MATREXX30

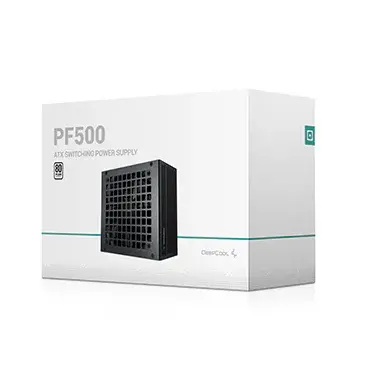

Power Supply

Technical Spec
TypeATX12V V2.4
Product Dimensions150×140×86mm (W x L x H)
80PLUS Certifications230V EU White
Fan Size120mm
Fan BearingHypro Bearing
TopologyActive PFC+Double tube forward
CapacitorsTaiwan bulk capacitor
Power Good Signal100-500ms
Hold Up Time≥16ms(75% Load)
Efficiency≥85% Under Typical Load(50% Loading)
ProtectionOPP/OVP/SCP/UVP
Operation Temperature0-40°C
RegulatoryCB/CCC/CE/UKCA/EAC/RCM/BIS
Erp RegulationErP 2010
MTBF100,000 Hours
EAN P/N6933412709381 R-PF500D-HA0B-AU
6933412709398 R-PF500D-HA0B-AR
6933412709404 R-PF500D-HA0B-CN
6933412711254 R-PF500D-HA0B-EU
6933412711261 R-PF500D-HA0B-UK
6933412711278 R-PF500D-HA0B-WO
6933412711285 R-PF500D-HA0B-BP
6933412711674 R-PF500D-HA0B-US


$ 139.00 $ 139.00

This combination does not exist.

500W Case Power Supply
