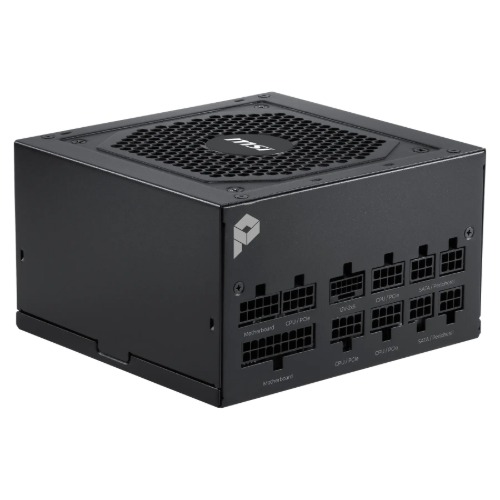

MSI MAG A850GL PCIE5 850W 80+ Gold Fully Modular Power Supply | ATX 3.1 Ready, PCIe 5.1 600W GPU Connector, 120mm FDB Fan, Active PFC, Full Protection

MSI MAG A850GL PCIE5 850W 80+ Gold Fully Modular Power Supply | ATX 3.1 Ready, PCIe 5.1 600W GPU Connector, 120mm FDB Fan, Active PFC, Full Protection, Compact ATX Design
80 PLUS Gold-certified power efficiency, ATX 3.1 ready, and PCIe 5.1 GPU support, cooled by a 120mm fluid dynamic bearing (FDB) fan. Outfitted with a full-bridge LLC DC-to-DC topology, an extra-compact ATX frame, and a fully modular design.
Protection
OCP, OTP, OPP, SCP, OVP, UVP
PERIPHERAL (4 pin)
2
SATA (15 pin)
6
PCI-E (6+2 pin)
3
PCI-E 5.1 (16 pin)
1 (600W)
EPS (4+4 pin)
1
EPS (8 pin)
1
ATX (24 pin)
1
Power Excursion
1700W (*up to 200% of the PSU's rated power for 100μs)
Input Frequency Range
47-63Hz
Power Watt
850W
Input Voltage Range
100-240V~
PFC Type
Active PFC
Dimensions (DxWxH)
150 x 140 x 86 mm / 5.9 x 5.51 x 3.38 inches
Fan Bearing
Fluid Dynamic Bearing
Fan Size
120 mm
Modular
Fully Modular
Efficiency Rating
80 PLUS Gold (up to 90%)
