Ubiquiti UniFi Access Door HubSingle Door Entry MechanismPoE Power,Support UA-LITE& UA-PRO,Four Inputs &12v Dry Relays for Most Door Lock
Network › UniFi › Door Access

Ubiquiti UniFi Access Door HubSingle Door Entry MechanismPoE Power,Support UA-LITE& UA-PRO,Four Inputs &12v Dry Relays for Most Door Lock

$429.00
Out of Stock
Expected back in stock around 14 Oct 2026
Contact Us
Brand
Ubiquiti
MPN
UA-HUB-Door
Warranty
12 Months
Dimensions (L×W×H)
223 × 168 × 50 mm
Barcode
810084690598
Ubiquiti UniFi Access Hub Describation: The Access Hub is a single-door mechanism that provides complete entry and exit control via connected Access Readers. SKU: UA-HUB-Door (Note. Replaces by UA-Hub ) Tech Specs: Click Here Installation Guide: Click Here Accessories: Click Here Features: •(2) Lock terminals (12V and Dry) •(2) AUX terminals for an external siren and automatic door opener •(4) Additional inputs (sensors and buttons) •Connect and power using PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU •Connect to two UniFi Access readers and one UniFi Protect camera •Dimensions: 174.9 x 126 x 32.9 mm •Supported Doors: 1 •Maximum User Count: 6,000 •NDAA Compliant: Yes •Input Terminals (2) Door exit request (1) Door position (1) Emergency

Recommended Accessories

Ubiquiti UniFi Long-Range Ethernet Repeater, Receives PoE/PoE+, Offers Passthrough PoE Output, PoE Connections Up to 1 km
Ubiquiti UniFi Long-Range Ethernet Repeater, Receives PoE/PoE+, Offers Passthrough PoE Output, PoE Connections Up to 1 km
$59.40
Ubiquiti UniFi Access Reader G2 Professional, 2-Way Intercom, Unlock Via NFC or Unifi Identity, IP55 Weather Resistance, Pin Unlock
Ubiquiti UniFi Access Reader G2 Professional, 2-Way Intercom, Unlock Via NFC or Unifi Identity, IP55 Weather Resistance, Pin Unlock
$729.00
Ubiquiti Door Lock Relay Cable, 500-foot (152.4 m) Spool of One Pair, Low-voltage Cable, Solid bare coppe , 36V DC, White
Ubiquiti Door Lock Relay Cable, 500-foot (152.4 m) Spool of One Pair, Low-voltage Cable, Solid bare coppe , 36V DC, White
$239.00

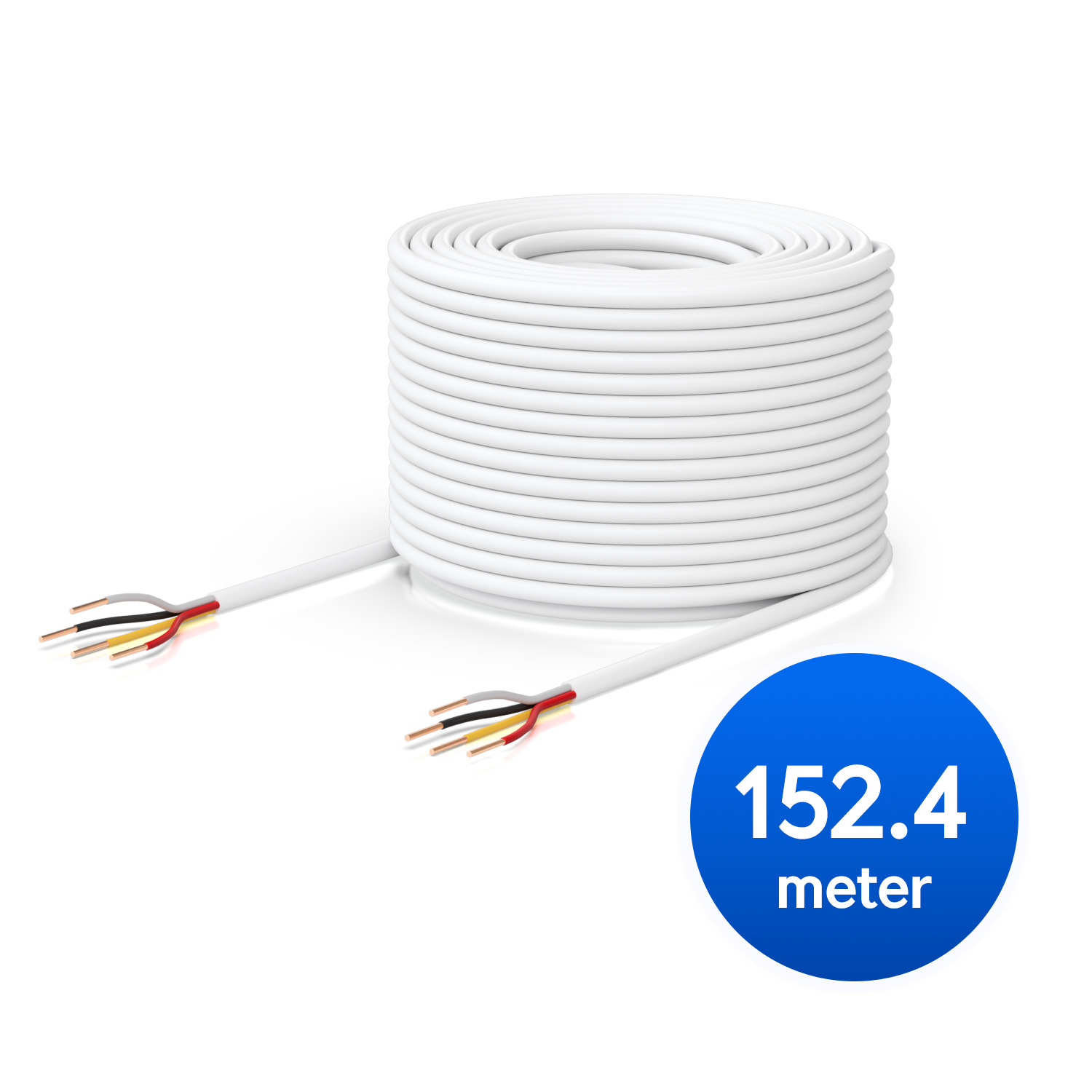

Ubiquiti Door Lock Relay Cable, 500-foot (152.4 m) Spool of Two-pair, low-voltage Cable, 36V DC, Solid bare copper,White
Ubiquiti Door Lock Relay Cable, 500-foot (152.4 m) Spool of Two-pair, low-voltage Cable, 36V DC, Solid bare copper,White
$309.00
Ubiquiti UniFi Access Lock Electric 15MM, Connects to UniFi Access Hub,Holds Up to 1200 kg (Renamed by NHU-LOCK-STRIKE-SAFE-15MM)
Ubiquiti UniFi Access Lock Electric 15MM, Connects to UniFi Access Hub,Holds Up to 1200 kg (Renamed by NHU-LOCK-STRIKE-SAFE-15MM)
$150.88
Ubiquiti UniFi Network, UniFi Network, 8-Port, POE 120W, (4) GbE PoE+,(4) GbE PoE++ Ports, (1) GbE Port, Rack Mount,
Ubiquiti UniFi Network, UniFi Network, 8-Port, POE 120W, (4) GbE PoE+,(4) GbE PoE++ Ports, (1) GbE Port, Rack Mount,
$2,069.00
Ubiquiti U-PoE++ Adapter, Power UniFi PoE++ Devices With Wireless Mesh Application, Offload PoE Switch Power Dependencies, Max PoE+ 60W
Ubiquiti U-PoE++ Adapter, Power UniFi PoE++ Devices With Wireless Mesh Application, Offload PoE Switch Power Dependencies, Max PoE+ 60W
$65.00

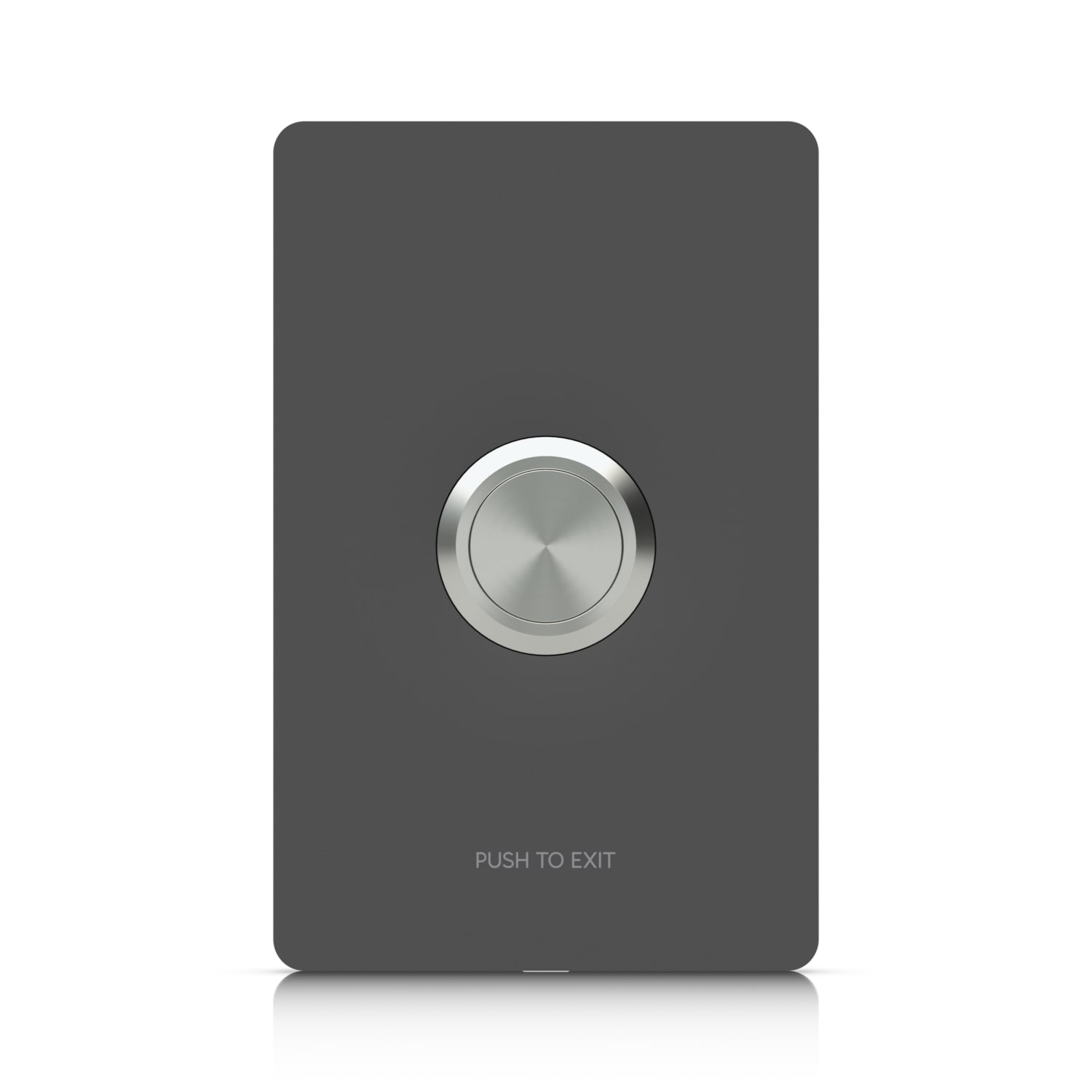

Ubiquiti Access Button, Push-to-exit Button Designed For UniFi Access Hubs, Contacting Rate 30V DC, 2A, Indoor Only
Ubiquiti Access Button, Push-to-exit Button Designed For UniFi Access Hubs, Contacting Rate 30V DC, 2A, Indoor Only
$81.97
Ubiquiti Junction Utility,An Indoor/Outdoor Enclosure Designed For UniFi Access Hubs, Switches& Accessories, IP55
Ubiquiti Junction Utility,An Indoor/Outdoor Enclosure Designed For UniFi Access Hubs, Switches& Accessories, IP55
$231.66

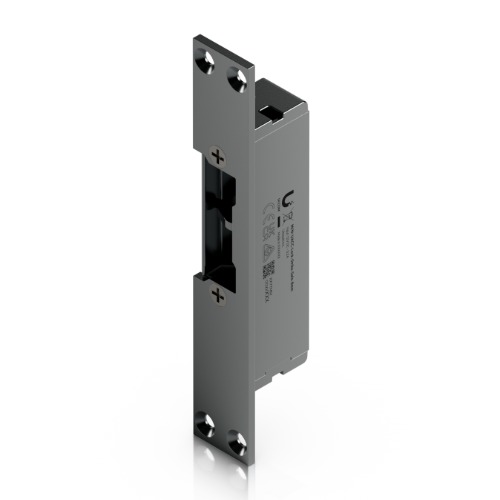

Ubiquiti Fail-Safe Strike Lock, 8MM Lock Slot Depth Support, Connect to UniFi Access Hub (EAH-8,UA-Hub-Gate,UA-Ultra,UA-Hub-Door,UA-Hub-Door-Mini )
