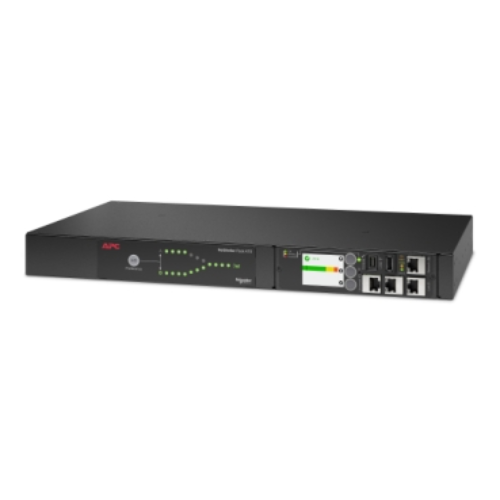

APC Netshelter Rack Automatic Transfer Switch, 1U, 12A, 208V , C14 IN, 12 C13 OUT, 50/60Hz

APC Netshelter Rack Automatic Transfer Switch, 1U, 12A, 208V , C14 IN, 12 C13 OUT, 50/60Hz
APC NetShelter Rack Automatic Transfer Switch (ATS) AP4433A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4433A is single phase 1U Rack ATS with 12A rated current, 208V rated voltage and 3300VA load capacity. It comes with 2 IEC C14 inlet and 12 IEC C13 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
Main Input Voltage 230 V AC 1 phase
Product or component type Automatic transfer switch
Main Input Voltage
208 V AC 1 phase
Product or component type
Automatic transfer switch
Main Output Voltage
208 V AC 1 phase
Input Connection Type
IEC 60320 C14 12 A 2P + E
Number of rack unit
1U
Cable length
2.43 m
Number of cables
2
Provided equipment
Mounting hardware
Rack mounting brackets
Physical
Colour
Black
Height
44 mm
Width
432 mm
Depth
236 mm
Net weight
3.74 kg
Mounting location
Front
Rear
Mounting preference
No preference
Mounting mode
Rack-mounted
Mounting position
Horizontal
Input
Network frequency
50/60 Hz
[In] rated current
12 A
permissible voltage
187…228 V
Max line current
12 A
Input current limits
12 A
Load capacity
3300 VA
Output
Max current draw
12 A
Number of power socket outlets
12 IEC 60320 C13 12 A 2P + E
Protection type
Without circuit breaker
Power cable length
2.44 m
Conformance
Standards
EN 55022 class A
FCC part 15 class A
Environmental
Ambient air temperature for operation
-5…45 °C
Relative humidity
5…95 %
Operating altitude
0...10000 ft
Ambient air temperature for storage
-25…65 °C
Storage Relative Humidity
5…95 %
Storage altitude
0…15240 m
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
11.4 cm
Package 1 Width
60 cm
Package 1 Length
35.6 cm
Package 1 Weight
5.51 kg
Contractual warranty
Warranty (in months)
24
